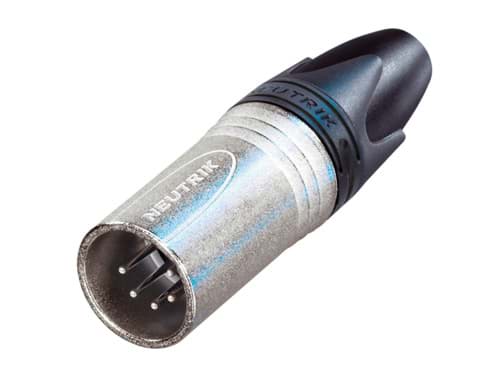

XLR kabeldeel 5 pin pen nikkel behuizing zilvercontacten XX

Merk:
Productcode:
NC5MXX
GTIN:
7613187000294
5 pole male cable connector with Nickel housing and silver plated contacts.

The next generation of the worldwide accepted standard of XLR cable connectors.
  • Unique cage type female contact – increases conductivity
  • Female contact with “solder stop” for ease of soldering
  • Male connector without locking “window” – more robust housing, increases durability
  • Improved chuck type strain relief - increases retention force and makes assembly easier and faster
  • New ground contact – excellent contact integrity between chassis and cable connector
  • Customized branding using translucent ring
  • Sleek and ergonomic design – valuable and handy
  • Internal thread on shell is well protected against any damage
Merk
Neutrik
Productcode
NC5MXX
GTIN
7613187000294
Type (BME)
kabeldeel XX-serie standaard
ETIM-klasse
Rundsteckverbinder (Industriesteckverbinder)
Netto gewicht
0,0300 kg
GLN
7613187000003
Goederencode
85366990
Herkomstland
Switzerland
Voorganger
Aantal datacontacten
5
Type vergrendeling
Overig
Toegekende spanning (V)
50
Afgeschermd
Nee
Contactuitvoering
Pen
Materiaal behuizing
Zink
Coating behuizing
Overig
Met status-indicatie
Nee
Omgevingstemperatuur (°C)
-30 - 80
Brandbaarheidsklasse isolatiemateriaal conform UL 94
HB
Uitvoering elektrische aansluiting
Soldeeraansluiting
Materiaal contactcoating
Zilver
Uitvoering behuizing
Recht
Aansluitbare geleiderdoorsnede fijndraads zonder adereindhuls (mm²)
0 - 1
Beschermingsgraad (IP), gemonteerd
IP40
Met aardgeleider
Nee
Diameter connector (mm)
19
Toegekende stroom In (A)
7.5
Voor kabel(buiten)diameter (mm)
3.5 - 8
Min. aantal steekcycli
1000
Aantal vermogenscontacten
5
Aantal stuurcontacten
5
SKU
1CNTXL015A
GTIN
7613187000294
MPN
NC5MXX
Bestelbaar
Catalogusproduct
Minimale bestelhoeveelheid
1
Afmetingen (l×b×h)
20 mm × 100 mm × 175 mm mm
Gewicht
30,4 kg
