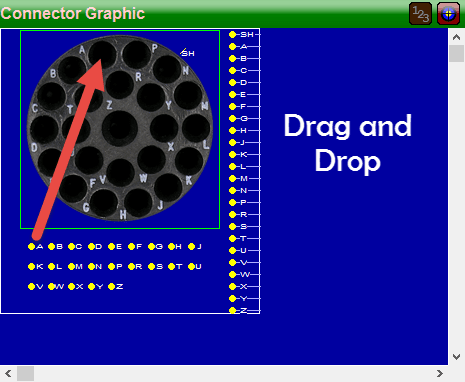

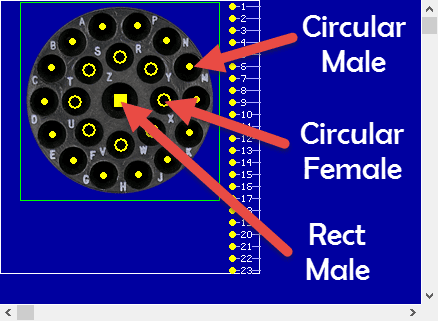

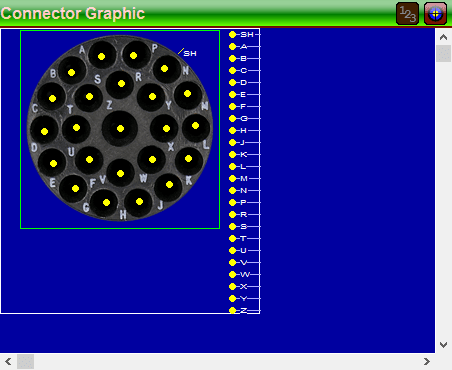

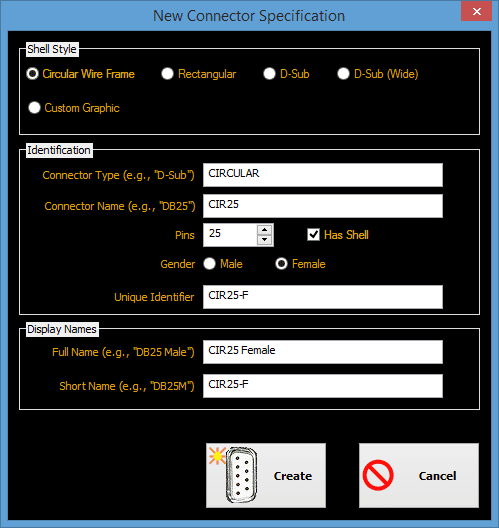

The CableEye® Connector Designer™ connector editor lets you create custom graphic images for unusual connectors not found in our library. This standalone application aims primarily at the many and varied kinds of circular connectors found in military and aerospace applications and permits you to choose a graphic size, position, and pin numbers, as necessary. The software will create a wire frame image as shown on the right, or will accept your photographic image of a connector in .png or .bmp form over which you may apply the pins, and pin numbering, if pin designations do not appear in the photo. Note that our standard software includes an automatic graphic tool for rectangular, D-shape, and matrix connectors, so for these types of images, you do not need the Connector Designer. However, if you need graphic images for circular or oddly shaped connectors, you should plan on ordering the Connector Designer connector editor with your system.
