Testsysteem Software PinMap

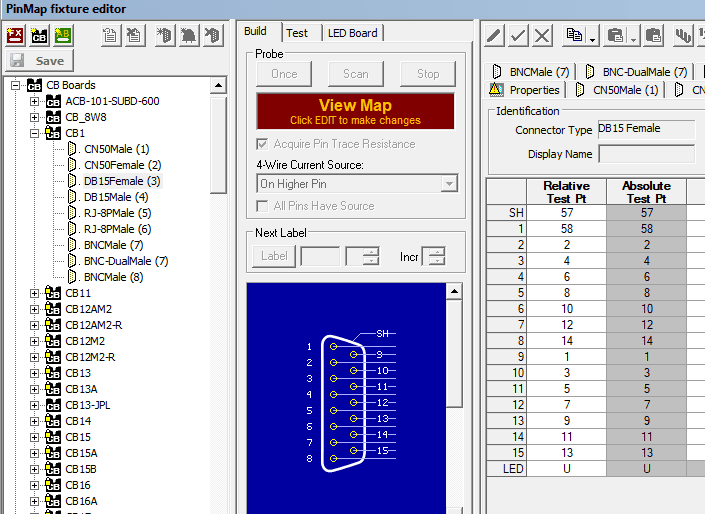

Use the PinMap fixture editor software to link custom test fixtures, custom CB boards, specially-built connector panels, or pigtail adapters to the CableEye system. This software assigns test point numbers to connector types and applies standard pin designations to the pin numbers. For each custom connector, first choose a connector graphic from our large library to match your connector. Then touch the tester's probe to the connector pins one-by-one to automatically detect and assign a test point to each pin. A synthetic voice reads probed pins as you touch them so you don't need to take your eyes off the connector you're probing. Finally, enter pin labels of your choice if you wish to override the standard designations. Create custom pin labels of up to seven alphanumeric characters, an especially valuable feature for labeling wiring harness connectors. When you finish probing all pins, you store a "map" file for the custom fixture. A menu within the CableEye application lets you easily select the desired map file. Cut and paste connector maps between different map files to mix maps from different CableEye CB boards with custom interfaces. Includes an electronic directory of all connector images available in our graphics library. Windows includes synthetic voices of fair quality. You may wish to consider ordering a high-quality AT&T Voice Font; see Item 792.
