Testsysteem M2Z 128 testpunten

This entry level tester provides basic continuity measurement in cables and small wire harnesses. It is suitable for cables carrying digital signals or any electronic signaling where small amounts of resistance in the cable or connections will not affect the function of equipment to which the cables are connected.

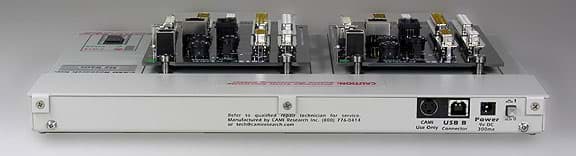

This item comprises a 128-point control module with probe port and electronics permitting it to test cables with a maximum of 64 conductors. The price includes a CB29 board set, probe, operating software, power module, USB cable, Getting Started Guide, Software Introduction Booklet, User's Manual (PDF), and two-year Product Support Subscription. A computer is required and not included. USB interface. Ready to use.

Use the TEST button on the tester or click on the software screen to trigger a test. A READY indicator confirms a link to the PC software, and PASS, and FAIL indicators visually show the test result. Measurement for a typical cable completes in less than a second. We use industry-standard 64-pin dual-row latch headers as an interface to all of our plug-in connector boards and external test fixtures. The aluminum case is formed from 1/16”-thick aluminum with scratch-proof Lexan surface for long life in an industrial environment. Calibration is not required. This model is not expandable.
