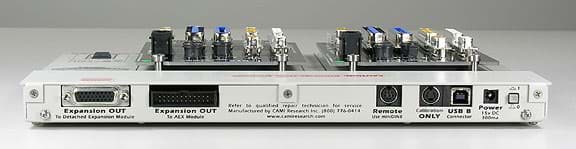

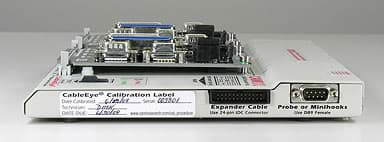

Testsysteem M3Z 128-TP Merk: CableEye Productcode: 826 The M3Z CableEye Test System for Continuity and Resistance Test and Measurement 128 Test Points (Expandable to 2560 Test Points) + 24 Accessory Test Points miniDIN8 Socket for Remote Control, DB9 Socket for Probe/Minihooks, 24-pin Header for Expander Cable Measures Resistance between 0.1 Ω and 5 MΩ Expandable to 2560 Test Points For Diagnostic and Pass/Fail Testing Tests for continuity (opens, short, miswires, intermittence) and resistance limits Measures resistors, diodes, and complex networks Board sets are not included Details Merk CableEye Productcode 826 Website fabrikant Fabrikantartikelcode M3Z Type (BME) M3Z Toon alles van dit type Serie Testers Toon alles in deze serie ETIM-klasse Measuring instrument set Toon alles in deze klasse GLN 2220000165174 Herkomstland United States Technische informatie Serie Testers Type M3Z ETIM Klasse Meetapparatuurset Bestelinformatie SKU GCE826000 MPN 826 Bestelbaar Catalogusproduct Levertijd 14 dagen Omverpakking 1 Minimale bestelhoeveelheid 1 Afmetingen (l×b×h) 320 mm × 260 mm × 100 mm mm Gewicht 2,828 kg Uitgebreide code GCE0 Documenten
